Electrolyte Analyzer P1V
Blood Gas Analyzer EG-i30V
Parameters and Applications
K+
Cl-
Na+
pH
pCO2

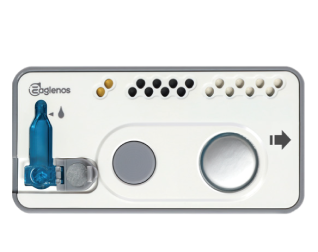

Dual-test cartridge L5CV
K+
Cl-
Na+
iCa2+
iMg2+
Electrolyte test cartridge L5V
pO2
pCO2
pH
K+
Cl-
Na+
iCa2+
Glu
Lac
Hct
Blood gas test cartridge EG10+V
Key Features
Swift calibration and test
Compact and portable
Built-in thermal printer
Easy to use (video tutorial included)
Room temperature stored test cartridges for up to 8 months
Compatible with HIS/LIS data transfer systems
Long lasting performance
Built-in barcode scanner
Maintenance free (no liquid pathways)
Large storage capacity (over 100,000 entries)
Single-use cartridges, no cross contamination, no waste of reagents
Minimal sample volume, minimal discomfort
Parameters
| Subject | Electrolyte Analyzer P1V | Blood Gas Analyzer EG-i30V |
|---|---|---|
| Sample types | Venous whole blood, plasma, and serum | Arterial and venous whole blood |
| Testing principle | Electrochemistry/Microfluidic method | Electrochemistry/Microfluidic method |
| Sample requirement | 110 µL | 150 µL |
| Test time | 5 ± 0.5 min (including calibration) | Calibration less than 3 minutes; Measuring time less than 45 seconds |
| Memory capacity | 99999 results | 100,000 test results and 10,000 quality control results |
| Operating temperature | 18 °C-30 °C | 18 °C-30 °C |
| Display screen | 7-inch color touch screen | 8-inch color touch screen |
| Printer | Built-in | Built-in |
| Code scanner | Built-in | Built-in |
| Dimensions | 240 mm x 120 mm x 110 mm (± 10 mm) | 235 mm × 210 mm × 160 mm (± 10 mm) |
| Weight | 1.5 ± 0.2 kg (with battery) | 3.0 ± 0.5 kg (with battery) |
Versatile Applications
Electrolyte and Acid- Base Imbalances
Critical Care and Emergency Situations
Respiratory Function and Oxygenation
Renal Function and Hydration Status
Diabetes and Glucose Monitoring
Assessment of Cardiovascular Health
Gastrointestinal Disorders
Musculoskeletal System and Behavioral Abnormalities
Anesthesia Monitoring and Surgical Support
